STRUCTURE DESCRIPTION

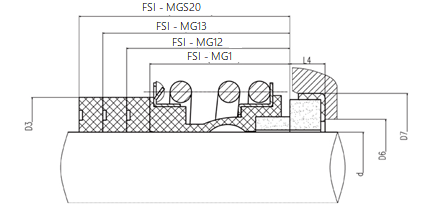

• Equivalent to Bergmann MG1, MG12, MG13 & MGS20 Mechanical Seal Rubber bellows design

DETAILS

• For Plain Shaft
• Inside mounted
• Unbalanced
• Independent of direction of rotation
• No stress on bellow

APPLICATION

• Water & waste water
• Chemical Industry
• Oil application
• Pulp & Paper & many mores

OPERATING LIMITS

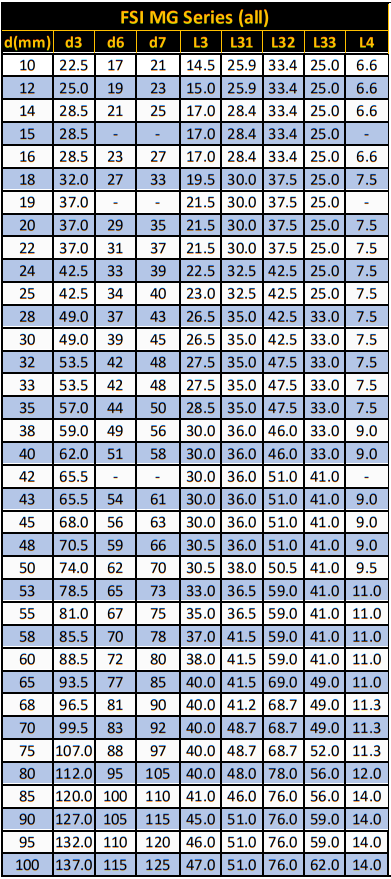

• Standard Size: 10mm to 100mm
• Pressure: 16 bar(max)
• Temperature: -20°C   ? +120°C  (1°C?33.8F)
• Velocity (Speed): 10m/s

FACE MATERIALS

• Carbon, Ceramic
• Silicon Carbide & Tungsten Carbide (*Designs for other materials are available)

ELASTOMER

• NBR, EPDM & Viton (FKM)

METAL PARTS

• SS 304 & SS 316
