*STRUCTURE DESCRIPTION*

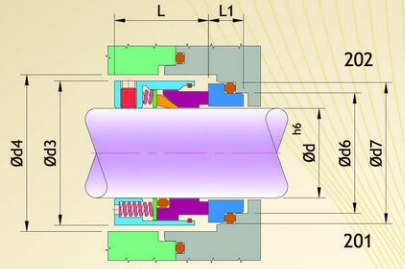

¨    Multi Spring Unbalance Mechanical Seal

*DETAILS*

¨    Simple Design

¨    Unbalanced

¨    No wear on Shaft

¨    Loosely inserted seal face do self-adjustable

*APPLICATION*

¨    Water & waste water application

¨    Chemical & Oil application

¨    Pharmaceuticals & many more

¨

*OPERATING LIMITS*

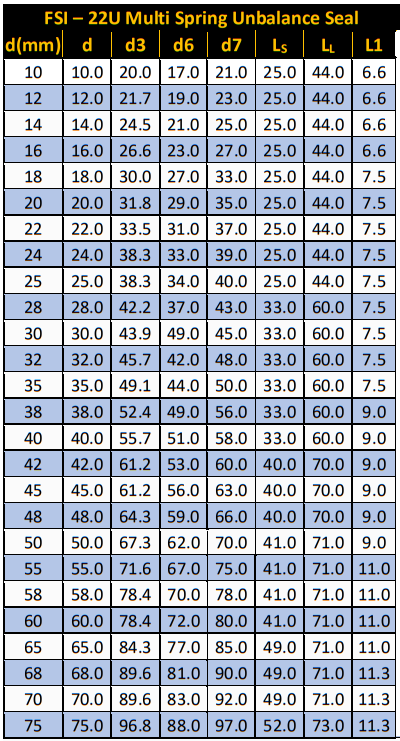

¨    Standard Size: 10mm to 75mm

¨    Pressure: 16 bar(max)

¨    Temperature: -20 C   ? +140 C  (1 C?33.8F)

¨    Velocity (Speed): 10m/s

¨   *FACE MATERIALS*

¨    Carbon, Ceramic,

¨    Silicon Carbide

(*Designs for other materials are available)

¨   *ELASTOMER*

¨    NBR, EPDM & Viton (FKM)

*METAL PARTS*

         ¨   SS 304 & SS 316
