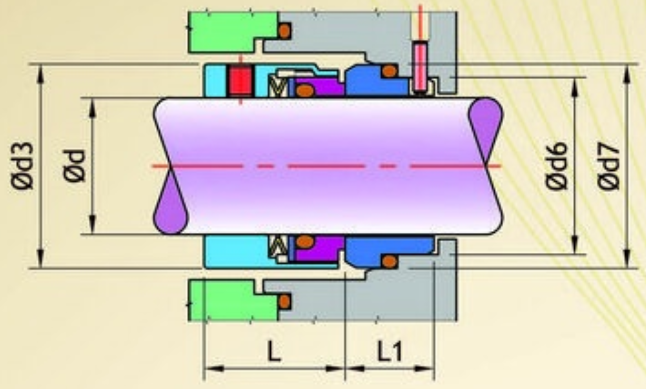

*STRUCTURE DESCRIPTION*

¨    Metal Bellow Mechanical Seal

*DETAILS*

¨    Single Acting

¨    Dual directional

¨    Inside mounted

¨    Independent of the direction of rotation

¨

*APPLICATION*

¨    Petrochemical

¨    Chemical Industry

¨    Food Processing Industry

¨

*OPERATING LIMITS*

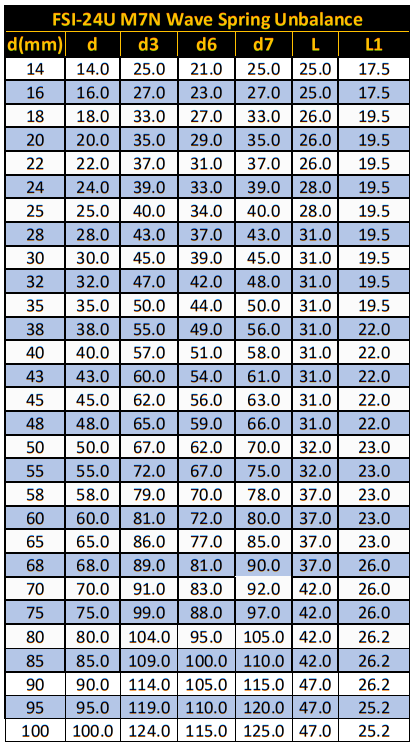

¨    Standard Size: 25mm to 100mm

¨    Pressure: up to 25 bar(max)

¨    Temperature: -70 C   ? +350 C

¨    Velocity (Speed): 3000rpm

¨   *FACE MATERIALS*

¨    Carbon, Silicon & TC

¨    Tungsten Carbide & Silicon Carbide

(*Designs for other materials are available)

*ELASTOMER*

¨    Flexible Graphite

*METAL PARTS*
