STRUCTURE DESCRIPTION

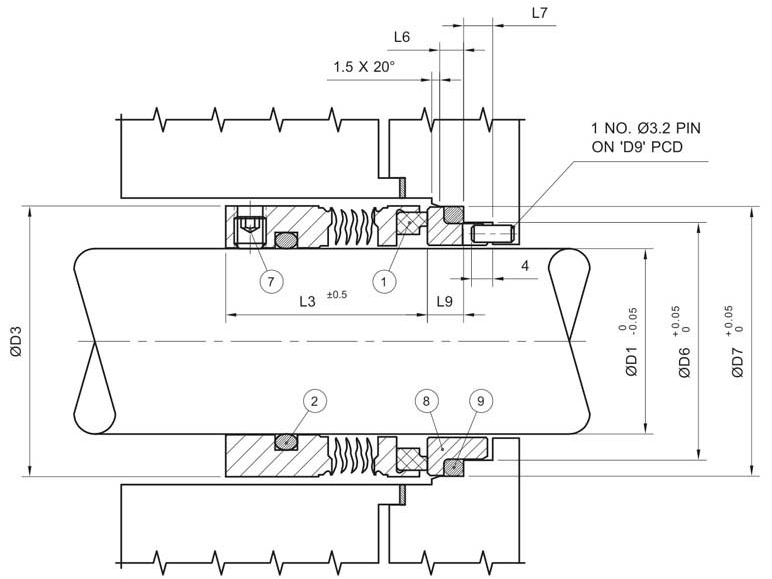

• Metal Bellow Mechanical Seal

DETAILS

• Single Acting
• Dual directional
• Inside mounted
• Independent of direction of rotation

APPLICATION

• Petrochemical
• Chemical Industry
• Food Processing Industry

OPERATING LIMITS

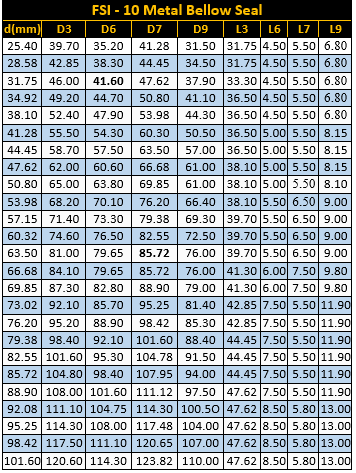

• Standard Size: 25mm to 100mm
• Pressure: up to 25 bar(max)
• Temperature: -70°C   ? +350°C
• Velocity (Speed): 3000rpm

FACE MATERIALS

• Carbon, Silicon & TC
• Tungsten Carbide & Silicon Carbide
• (*Designs for other materials are available)

ELASTOMER

• Flexible Graphite

METAL PARTS

• SS 316,Hastelloy C, Titanium, Alloy-20
