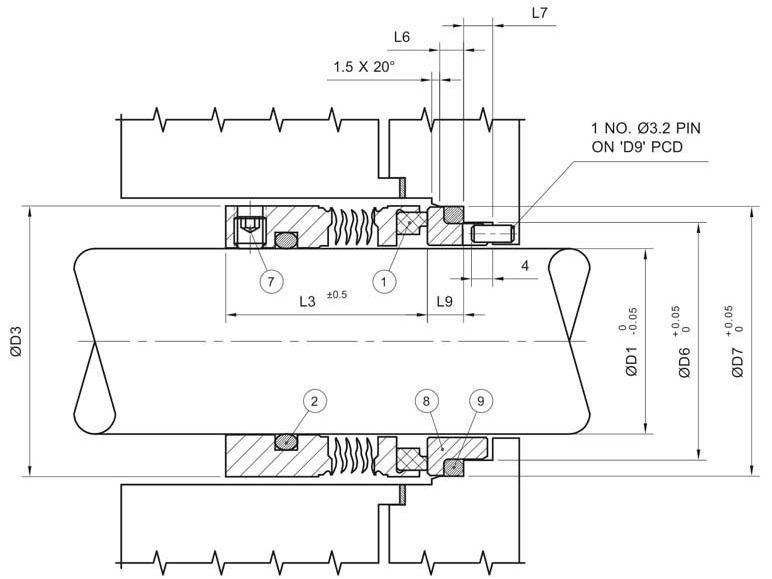

STRUCTURE DESCRIPTION

• Rubber Bellow Mechanical Seal

DETAILS

• Simple Design
• Unbalanced
• No wear on Shaft
• Loosely inserted seal face do self-adjustable

APPLICATION

• Water & waste water application
• Chemical & Oil application
• Pharmaceuticals & many mores

OPERATING LIMITS

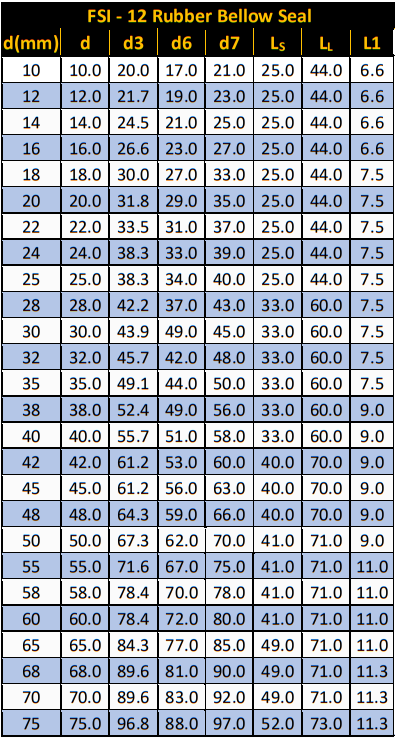

• Standard Size: 10mm to 75mm
• Pressure: 16 bar(max)
• Temperature: -20°C ? +140°C  (1°C?33.8F)
• Velocity (Speed): 10m/s

FACE MATERIALS

• Carbon, Ceramic
• Silicon Carbide
• (*Designs for other materials are available)

ELASTOMER

• NBR, EPDM & Viton (FKM)

METAL PARTS

• SS 304 & SS 316
