STRUCTURE DESCRIPTION

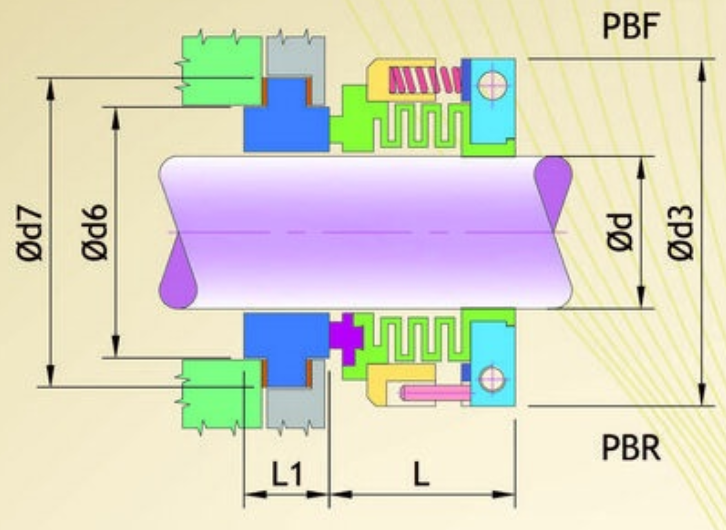

• Teflon Bellow Mechanical Seal

DETAILS

• For Plain Shaft, Out Side Mounted
• Independent of direction of rotation, Balanced
• No metal come in contact with media

APPLICATION

• Chemical, Acids, Salts, Lube Oil
• Low side content media
• Multi Stage, Screw & Gear Pump

OPERATING LIMITS

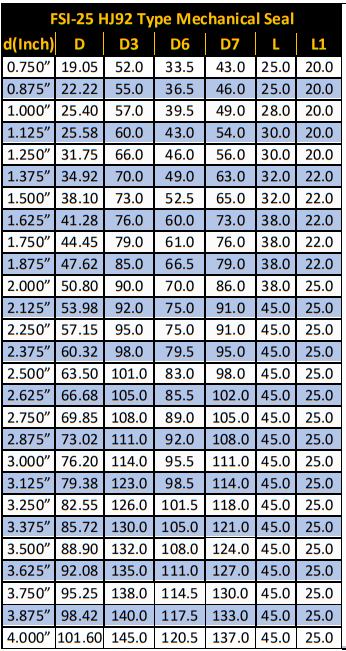

• Standard Size: 0.750” to 4.000”
• Pressure: 10 bar(max)
• Temperature: -40°C ?+120°C  (1°C?33.8F)
• Velocity (Speed): 20m/s

FACE MATERIALS

• GFT
• Silicon Carbide
• (*Designs for other materials are available)

ELASTOMER

• PTFE & GFT

METAL PARTS

• SS 316, SS 304 & Hast.-C
