*STRUCTURE DESCRIPTION*

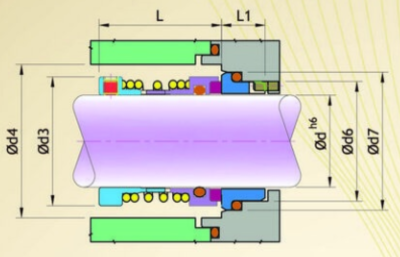

¨    Single Spring Mechanical Seal



*DETAILS*

¨    Single Acting

¨    Inside Mounted

¨    Unbalanced

¨    Independent of direction of rotation

¨

*APPLICATION*

¨    Slurry application

¨    Petroleum Refinery

¨    General Chemical

¨    Fertilizers

¨

*OPERATING LIMITS*

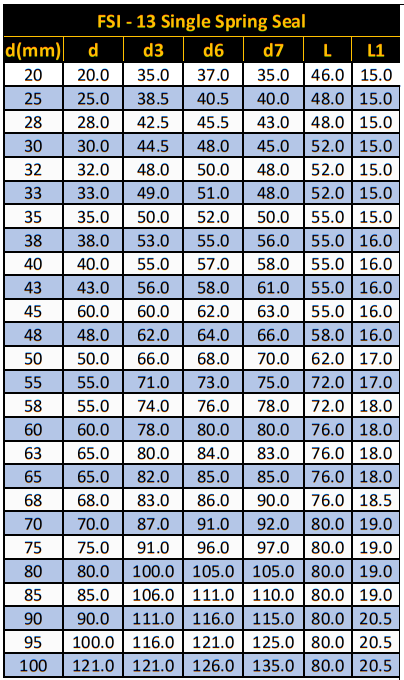

¨    Standard Size: 20mm to 120mm

¨    Pressure: 12 bar(max)

¨    Temperature: -50 C   ? +220 C  (1 C?33.8F)

¨    Velocity (Speed): 20m/s



¨    *FACE MATERIALS*

¨    Carbon, Ceramic,

¨    Silicon Carbide & Tungsten Carbide

(*Designs for other materials are available)



¨    *ELASTOMER*

¨    NBR, EPDM, Viton (FKM) & PTFE



*METAL PARTS*

         ¨    SS 304, SS 316 & Hast-C
