FSI - 11 Conical Spring Unbalance Seal

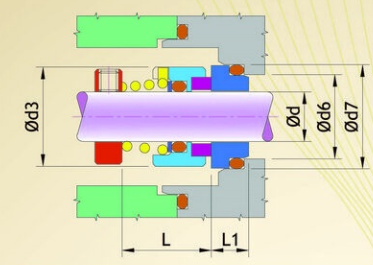

*STRUCTURE DESCRIPTION*

    Conical Spring Mechanical Seal





*DETAILS*

    For Plain Shaft

    Single Seal

    Unbalanced

    Rotating Conical Spring

    Depending on direction of rotation



*APPLICATION*

    Water & waste water application

    Pulp & Paper industries

    Chemical Industries

    Cooling water pump & many mores



*OPERATING LIMITS*

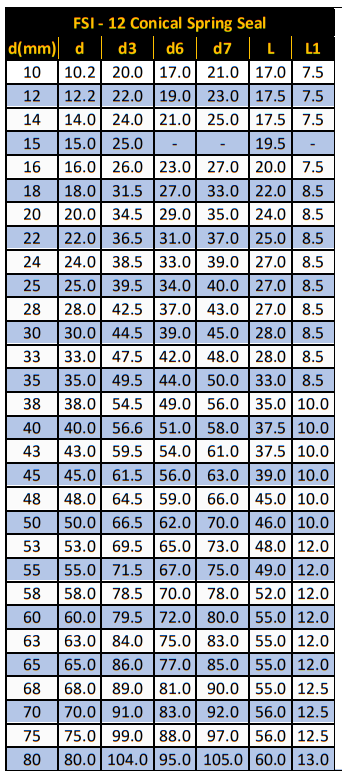

    Standard Size: 10mm to 80mm

    Pressure: 10 bar(max)

    Temperature: -20 C   ? +200 C  (1 C?33.8F)

    Velocity (Speed): 15m/s



   *FACE MATERIALS*

    Carbon, Ceramic,

    Silicon Carbide & Tungsten Carbide

(*Designs for other materials are available)



   *ELASTOMER*

    NBR, EPDM & Viton (FKM)



*METAL PARTS*

    SS 304 & SS 316
